Citroen Relay dimensions (2006-on)

This generation of Citroen Relay comes in four body lengths, three roof heights, three wheelbases and four gross vehicle weights (GVW).

Load volume ranges from 8.0 cubic metres to 17.0 cubic metres, while the payload rating is up to nearly 2,000kg - it's one of the heaviest haulers in the large van sector.

Citroen Relay exterior dimensions:

Note: if viewing on a phone you may need to turn the screen sideways to see the whole table

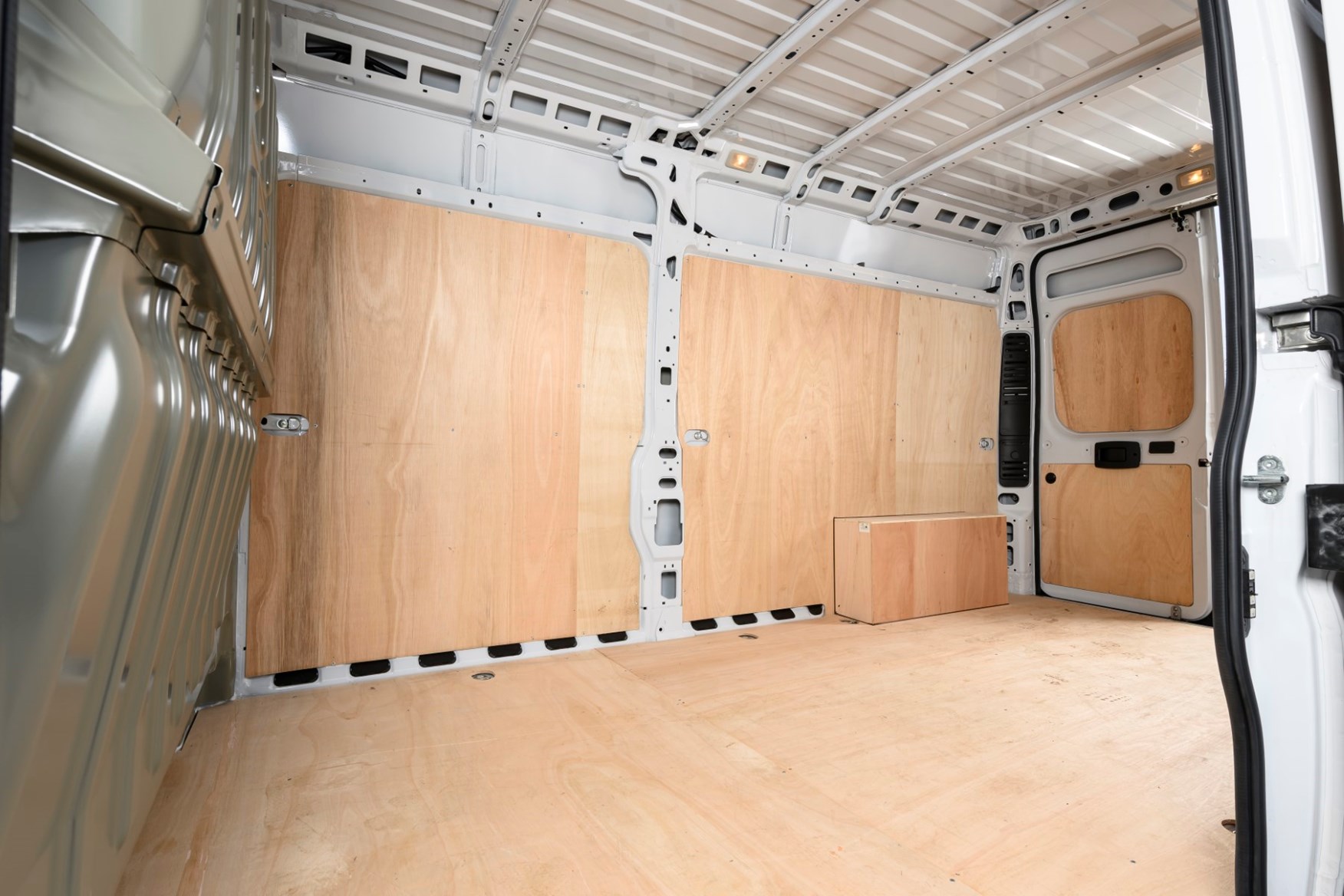

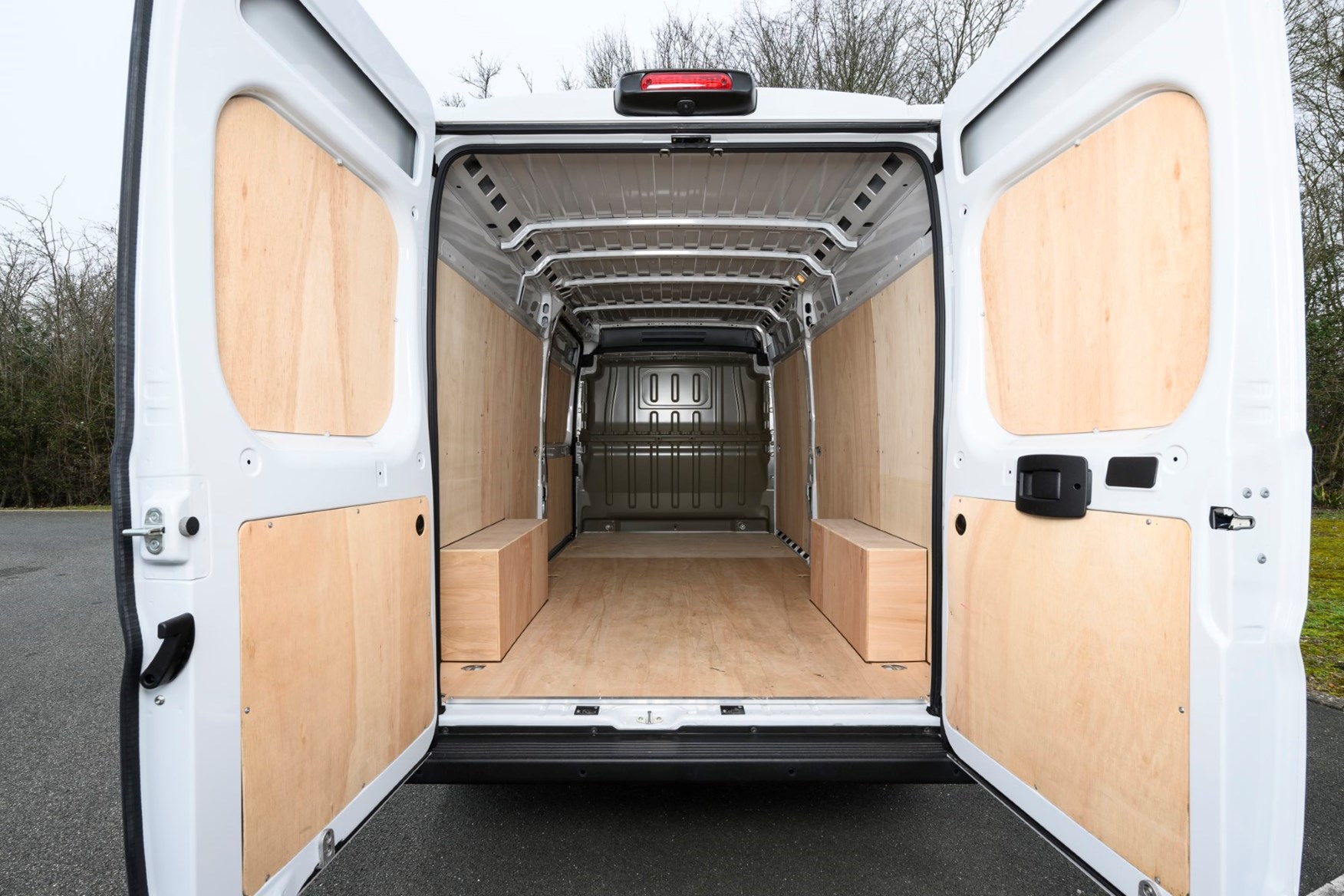

Citroen Relay load area dimensions:

Note: if viewing on a phone you may need to turn the screen sideways to see the whole table

Citroen Relay Crew Van load area dimensions:

Note: if viewing on a phone you may need to turn the screen sideways to see the whole table

The Citroen Relay comes in four gross vehicle weights (GVW):

• 3.0 tonnes / 3,000kg - labelled 30
• 3.3 tonnes / 3,300kg - labelled 33
• 3.5 tonnes / 3,500kg - labelled 35 or 35 Heavy, depending on spec
• 4.0 tonnes / 4,000kg - labelled 40 Heavy

Since GVW is the total allowed weight of the van and everything inside, these figures have a direct impact on payload.

Citroen Relay maximum payload:

All figures correct at time of writing in November 2021. Maximum payload varies engine specification, fitted equipment and age of van. Check the weight plate for the specifics of your vehicle.

Heavy models have specially reinforced suspension designed to withstand the rigours of repeatedly high payloads. The 40 Heavy models also have twin rear wheels.

Citroen Relay towing capacity

All versions of the Citroen Relay will tow a 750kg unbraked trailer.

Braked towing capacity varies with engine and van size, with the standard range currently offering between 2,500kg at the lower end and 3,000kg on tougher versions.
