Toyota Proace City dimensions (2020-on)
The Toyota Proace City lineup is easy to understand - with loading dimensions determined by a choice of just two body lengths, and payload determined by engine.
All models get twin sliding doors - rare in the small van sector - and rear side-hinged doors, plus a full-height bulkhead.
Available optionally is a load-extending bulkhead called Smart Cargo, which comes with a dual front passenger seat - this is more of an honorific as it's a very tight squeeze for three in the cab.
For details of the driving experience, standard equipment and value, see the main Toyota Proace City review page.
The Toyota Proace City is available in two body lengths: the short-wheelbase (SWB) L1 and long-wheelbase (LWB) L2.
Both come with twin sliding doors and twin rear doors, offering plenty of options for loading. Unsurprisingly, the load area and capacity exactly mirrors its sister vans - the Citroen Berlingo, Peugeot Partner and Vauxhall Combo Cargo - although the standard fitment of twin side doors is unique to the Toyota.
There’s no difference in the height of the body, the added size and capacity of the L2 model comes purely from a longer wheelbase and longer rear overhang.
In fact, the 4,753mm L2 model overlaps with the smallest version of the Toyota Proace medium van in terms of length, but offers less loading capacity.
There’s a maximum load floor length of 2,167mm but this can be increased to 3,440mm with the addition of Smart Cargo – that’s a folding passenger seat and load-through bulkhead,pictured above.
Toyota Proace City exterior dimensions:
|
Toyota Proace City size |
Proace City L1 |
Proace City L2 |
|
Exterior length (mm) |
4,403 |
4,753 |
|
Exterior height (mm) |
1,880 |
1,880 |
|
Exterior width with mirrors (mm) |
2,107 |
2,107 |
|
Exterior width mirrors folded (mm) |
1,848 |
1,848 |
Toyota Proace City load area dimensions and volume:
|
Toyota Proace City size |
Proace City L1 |
Proace City L2 |
|
Maximum load length (mm) |
1,817 |
2,167 |
|
Maximum load height (mm) |
1,236 |
1,243 |
|
Maximum load width (mm) |
1,550 |
1,550 |
|
Width between wheelarches (mm) |
1,230 |
1,230 |
|
Maximum load volume (cu m) |
3.3 |
3.8 |
|
Maximum load volume (Smart Cargo) |
3.9 |
4.4 |
Toyota, like its sister companies, claims this van offers class-leading payload across all of its models, as well as class-leading towing capacity.
Toyota Proace City payload
The maximum payload varies depending on engine and wheelbase. Models fitted with the entry-level 75hp engine can carry 650kg regardless of wheelbase.
Opting for the 100hp engine will see the payload extended to that class-leading 1,000kg figure for short-wheelbase vans. Long-wheelbase models see this reduced to 950kg.
>> Best small vans for payload
Toyota Proace City towing capacity
All Proace City models are rated to tow up to 1,500kg braked with the optional Towing pack. Unbraked, 75hp models can tow 650kg and 100hp models can tow between 710-740kg.

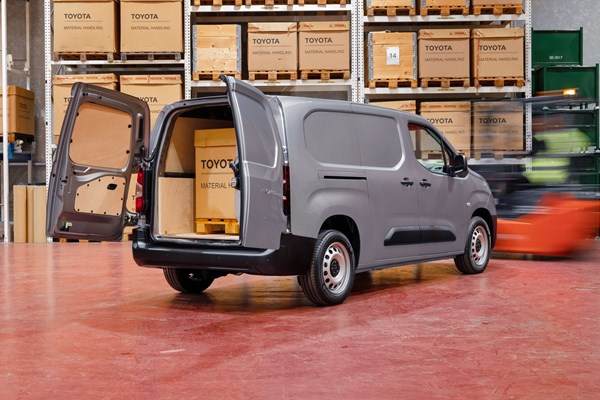

Toyota Proace City load area - SWB with rear doors open
Toyota Proace City dimensions, SWB side view, doors open
Toyota Proace City load capacity - Smart Cargo load-through bulkhead and folding passenger seat
Toyota Proace City review - LWB, side view, silver, twin sliding doors open
